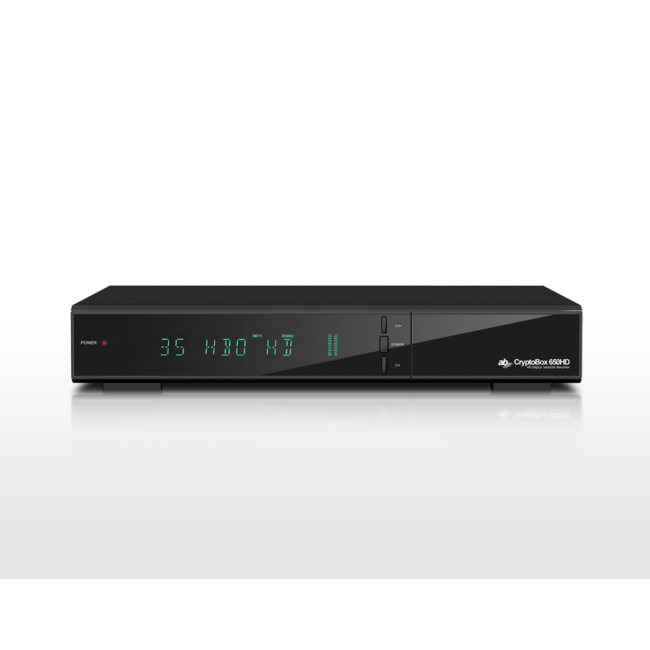

AB CryptoBox 650HD
Kuul are proud to launch the all new AB CryptoBox 650HD receiver from AB-Com. The combination of digital satellite receiver and multimedia player in its Full HD 1080p resolution. The possibility of watching HD programs, IPTV function, watch live TV on Android devices, multimedia video playback, pictures and music. Recording programs in the realm time, a simple time recording via EPG guide or TIMESHIFT time shift in recording. X-routes panel with loads of features: many games, FTP Downloader, weather forecasts, RSS viewing messages, rate, stock index and many other applications. FTP Downloader for backup, restore and transfer files from USB to FTP or FTP to USB (setting, firmware, video, MP3 ...)
G-MScreen application for Android and iOS devices through which stream a live broadcast, you control the receiver, check EPG or set a timer recording of your favorite program can be found free in the Google Play Store and App
Android App. for remote control box, adding and changing timer and streaming TV broadcast to your phone or tablet
Frequency range 950 MHz do 2150 MHz
FullHD resolution 1080p
Video resolution 1080i/p, 720p, 576i/p, 480i/p
1x DVB-S / DVB-S2 tuner
DiseqC 1.0/1.1/1.2/1.3 USALS 13V/18V, 0/22K
1x Common Interface
VFD Display
1x Card Reader
7-day electronic guide
1x HDMI port
Fast Scan
1x SCART
Time Shift recording and PVR function
1x RS232
PIG (Picture in Graphic)
2x USB 2.0 (1x Front, 1x Rear panel)
FTP manager, games, weather, stock market information, networking capability and many more…
1x LAN RJ 45
Automatic PAL / NTSC conversion
1x S/PDIF optical digital audio output
6000 TV / Radio Stations
Chipset: ALI3516
26 the favorite groups
Flash Memory: 8 MByte
Support FAT32 and NTFS
DDRII Memory: 128 Mbyte
Media player formats: audio MP3, OGG, FLAC
Signal Level -65 do -25 dBm
Video AVI, MKV,TS, TP, TRP, MPG, MP4
LNB power and polarization
Picture JPEG, BMP, GIF
General
Input Frequency
950 ~ 2150MHz
Input Level
-65 ~ -25dBm
Input Impedance
75Ω
LNB Polarisation
13V/18V/OFF, Imax = 400mA
LNB Switching
22KHz DiSEq C 1.0/1.2
Demodulation
QPSK ,8PSK
Reed-Solomon
204, 188, t = 8
Roll Off Factor
0.35,0.25
FEC
1/2, 2/3, 3/4, 5/6, 7/8, Automatic
Symbol Rate
2.0~45 MS/s
DVB Standard
DVB-S/S2 (EN300 421)
Video
Standard
ISO/IEC 13818-2 (MPEG1,MPEG-2 MP@ML,H.264, VC1, DV, DivX, and MPEG4)
Aspect Ratio
4:3, 16:9
Video Full Resolution
1920 × 1080p and 1920 × 1080i and 1280 × 720p for HD video, 720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p for SD video, dual MPEG-1, MPEG-2 and MPEG-4 decode for SD resolution,MPEG4 AVC / H.264 and VC1 decode for dual SD and single HD up to 720p and 1080i and 1080p
Video Format
PAL, NTSC
Video RAM
128 Mbytes
HDMI output
480p&480i,576p & 576i, 720p&1080i50Hz,1080P50Hz
Host Supplied Audio/Video
I & P frame support
Format conversion
Pan & Scan, Letterbox
Video planes
2 panes (1 graphic planes, 1 display planes)
Audio
Standard
ISO/IEC 13818-3 (Decoding: MPEG-2 layer I and II (Musiccam),MPEG4 AAC and MPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up to 640 Kbits/s, LPCM up to 48 KHz,MP3)
