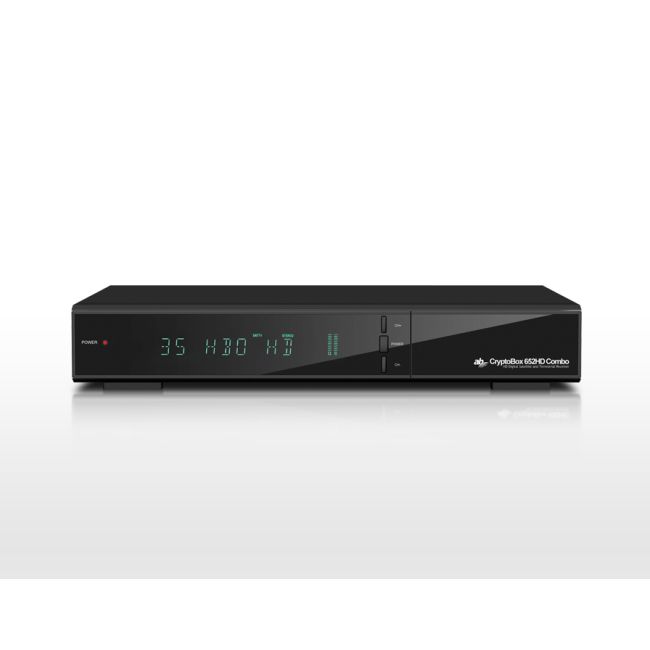

AB CryptoBox 652HD Combo
Kuul are proud to launch the all new CryptoBox 652HD Combo receiver from AB-Com. This model is a combination of digital satellite and terrestrial DVB-T2 receiver and multimedia player in its Full HD 1080p resolution. The possibility of watching HD programs, IPTV feature, stream live TV on Android devices, multimedia video playback, pictures and music. Recording programs in the real time, a simple time recording via EPG guide or TIMESHIFT time shift in recording. X-routes panel with loads of features: many games, FTP Downloader, weather forecasts, RSS viewer messages, rate, stock index and many other applications. FTP Downloader for backup, restore and transfer files from USB to FTP or FTP to USB (setting, firmware, video, MP3 ...)
G-MScreen application for Android and iOS devices through which stream a live broadcast, you control the receiver, check EPG or set a timer recording of your favorite program can be found free in the Google Play Store and App Store
Android App. for remote control box, adding and changing timer and streaming TV broadcast to your phone or tablet
Video resolution 1080i/p, 720p, 576i/p, 480i/p
FullHD resolution 1080p
DiseqC 1.0/1.1/1.2/1.3 USALS 13V/18V, 0/22K
Combo tuner – 1x DVB-S/S2 and 1x DVB-T/T2 tuner
VFD Display
1x Common Interface
7-day electronic guide
1x Card Reader
Fast Scan
1x HDMI port
Time Shift recording and PVR function
1x SCART
PIG (Picture in Graphic)
1x RS232
FTP manager, games, weather, stock market information, networking capability and many more…
2x USB 2.0 (1x Front, 1x Rear panel)
Automatic PAL / NTSC conversion
1x LAN RJ 45
6000 TV / Radio Stations
1x S/PDIF optical digital audio output
26 the favorite groups
Chipset: ALI3511
Support FAT32 and NTFS
Flash Memory: 8 MByte
Media player formats
DDRII Memory: 128 Mbyte
Audio MP3, OGG, FLAC
Signal Level -65 do -25 dBm
Video AVI, MKV,TS, TP, TRP, MPG, MP4
LNB power and polarization
Picture JPEG, BMP, GIF
Vertical: +13V/+14V,
DVB-S/S2 Tuner
Input Frequency
950 ~ 2150MHz
Input Level
-65 ~ -25dBm
Input Impedance
75Ω
LNB Polarisation
13V/18V/OFF, Imax = 400mA
LNB Switching
22KHz DiSEq C 1.0/1.2
Demodulation
QPSK ,8PSK
Reed-Solomon
204, 188, t = 8
Roll Off Factor
0.35,0.25
FEC
1/2, 2/3, 3/4, 5/6, 7/8, Automatic
Symbol Rate
2.0~45 MS/s
DVB Standard
DVB-S/S2 (EN300 421)
DVB-T/T2 Tuner
Input Frequency
50 ~ 870MHz
Input Level
min. -80dBm
Input Impedance
75Ω
Demodulation
4QAM,16QAM,64QAM,256QAM
FFT size
Automatic detection of FFT size
Terrisal Receiver Standard
EN 302 755
IF Bandwith
5, 6, 7, 8 MHz and 1.7MHz
F Frequency
4.57MHz
Support Single and Multiple PLPs mode
Yes
Video
Standard
ISO/IEC 13818-2 (MPEG1,MPEG-2 MP@ML,H.264, VC1, DV, DivX, and MPEG4)
Aspect Ratio
4:3, 16:9
Video Full Resolution
1920 × 1080p and 1920 × 1080i and 1280 × 720p for HD video, 720 × 480p, 720 × 480i, 720 × 576i, and 720 × 576p for SD video, dual MPEG-1, MPEG-2 and MPEG-4 decode for SD resolution,MPEG4 AVC / H.264 and VC1 decode for dual SD and single HD up to 720p and 1080i and 1080p
Video Format
PAL, NTSC
Video RAM
128 Mbytes
HDMI output
480p&480i,576p & 576i, 720p&1080i50Hz,1080P50Hz
Host Supplied Audio/Video
I & P frame support
Format conversion
Pan & Scan, Letterbox
Video planes
2 panes (1 graphic planes, 1 display planes)
Audio
Standard
ISO/IEC 13818-3 (Decoding: MPEG-2 layer I and II (Musiccam),MPEG4 AAC and MPEG4 AAC-HE (AAC+), Dolby Digital (AC-3) with bit rates up to 640 Kbits/s, LPCM up to 48 KHz,MP3)
